Part 1: What is Grain-Oriented Silicon Steel?(CRGO)

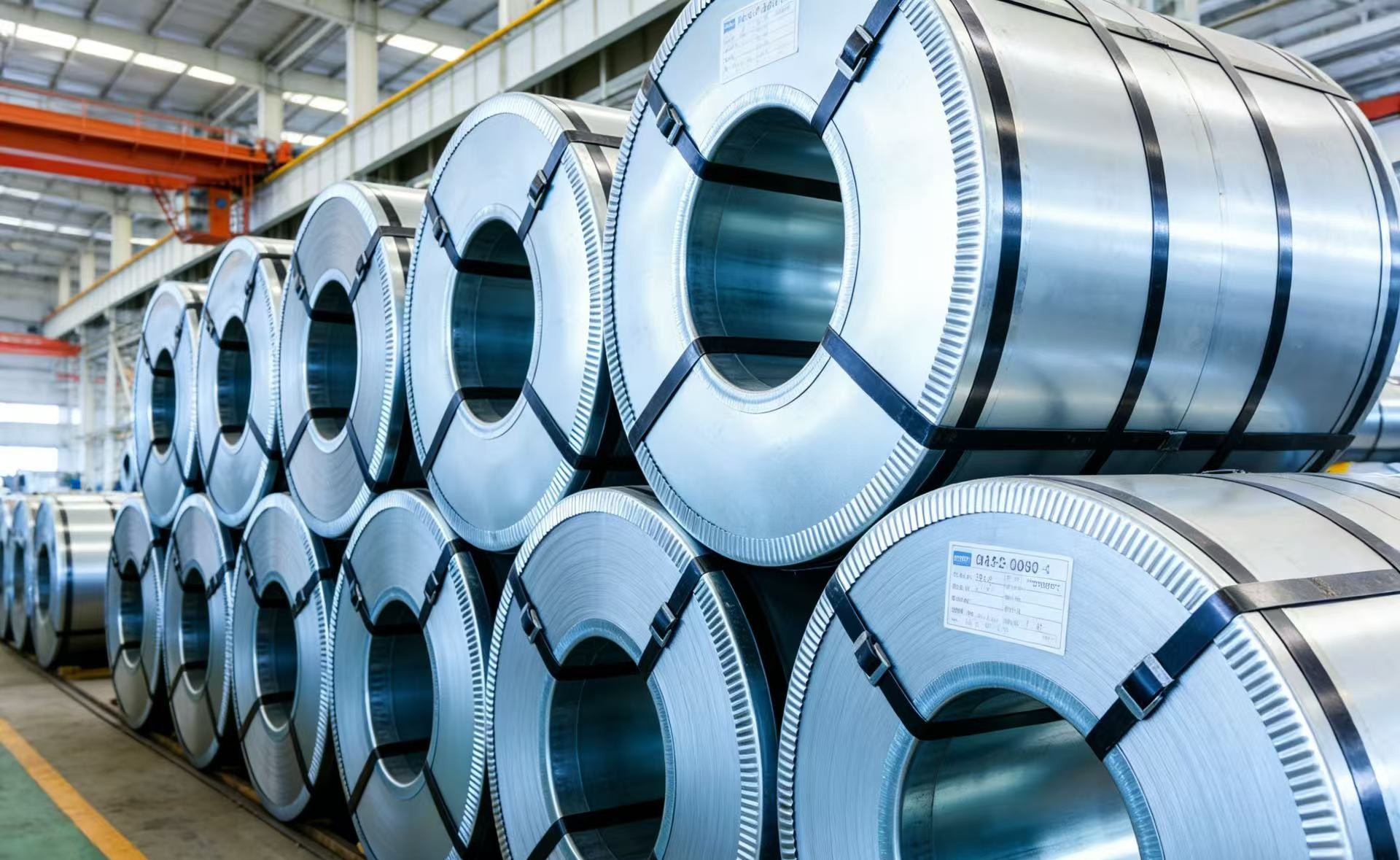

Grain-oriented silicon steel, fully known as cold-rolled grain-oriented electrical steel, is an iron-silicon alloy with a very high silicon content. Unlike ordinary steel, it undergoes complex rolling and heat treatment processes during manufacturing that align its grains in a specific direction (the rolling direction), creating a "neat arrangement."

This unique "orientation" gives it extremely low iron loss (hysteresis loss) and high magnetic permeability in the magnetizing direction. In simple terms, it acts like a "highway" built for magnetic flux lines, maximizing the efficiency of electrical energy conversion and transmission.

Part 2: Why is the Power Industry Dependent on It?

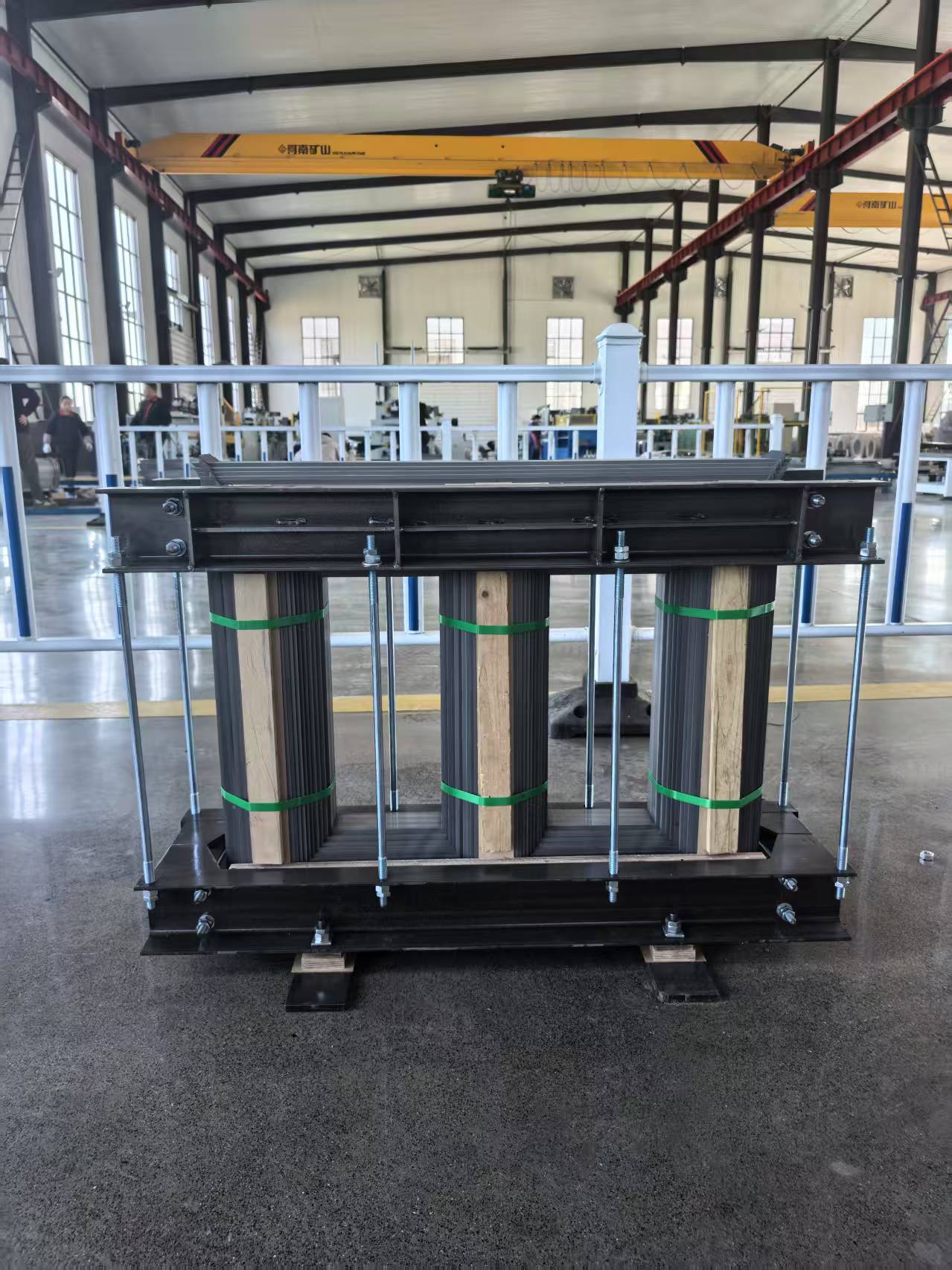

The core application of grain-oriented silicon steel is in transformer cores, the central hub of the power transmission network.

1. Reducing Losses for Energy Saving and Carbon Reduction:
   Transformer losses account for a significant portion of total grid losses. Using top-tier, high-permeability, low-loss grain-oriented silicon steel (such as HiB steel) can significantly reduce heat generation and energy waste during transformer operation. It is estimated that using higher-quality grain-oriented silicon steel could save tens of billions of kilowatt-hours of electricity waste globally each year, equivalent to the annual output of several large power plants.

2. Supporting UHV and Large-Scale Grids:
   With the advancement of China's UHV projects, electricity needs to be transmitted over long distances with large capacity. This requires transformers to withstand higher voltages and possess more stable performance. The saturation magnetic induction of grain-oriented silicon steel determines the volume and weight of the transformer core. High-quality grain-oriented silicon steel allows transformers to be more compact and lighter for the same capacity, meeting the stringent requirements of UHV projects.

3. Adapting to the Fluctuations of New Energy:
   The integration of new energy sources like wind and solar power introduces frequent voltage fluctuations into the grid. High-performance grain-oriented silicon steel can better cope with higher harmonics and complex excitation conditions, ensuring grid safety and stability in fluctuating environments.

Part 3: Industry Trends: Moving Towards Higher Grades
Currently, global grain-oriented silicon steel technology is advancing towards "high magnetic induction, thin gauges, and low noise."

• Ultra-Thin Strips: The rise of high-frequency transformers and new energy vehicle drive motors has created demand for ultra-thin grain-oriented silicon steel with thicknesses of 0.23mm, 0.20mm, and even 0.18mm.

• Low Noise & Environmental Friendliness: Urbanization demands quieter substations. By optimizing magnetostriction properties, a new generation of grain-oriented silicon steel is helping transformers shed their troublesome noise issues.

Part 4: What Does Choosing a Reliable Supplier Mean?
For transformer manufacturers and power engineering companies, choosing a reliable grain-oriented silicon steel supplier means choosing:

• Energy Efficiency Compliance: Meeting national Level 1 and Level 2 energy efficiency standards, enhancing product competitiveness.

• Long-Term Stability: Reducing transformer failure rates and lowering the total lifecycle maintenance cost.

• A Greener Future: Collaborating to contribute to the construction of a lower-carbon, more efficient smart grid.

Conclusion
Though inconspicuous, grain-oriented silicon steel underpins the operation of the entire electrical world. As a key material supplier in the power industry, HeBei Xinbian Electric Co.,Ltd is committed to providing the highest quality grain-oriented silicon steel solutions, witnessing and participating in this energy efficiency revolution together with global partners.
